Kabel Patch Serat Optik
Created with Pixso. 12 Core OM3 LC Fiber Optic Trunk Kabel Duplex 25m LSZH Jacket

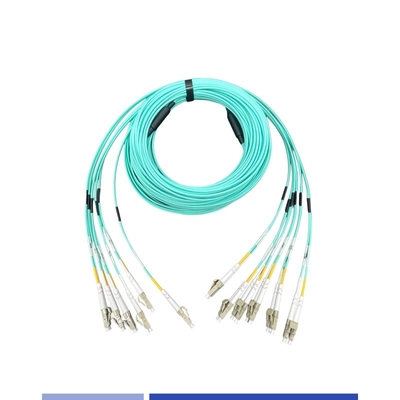

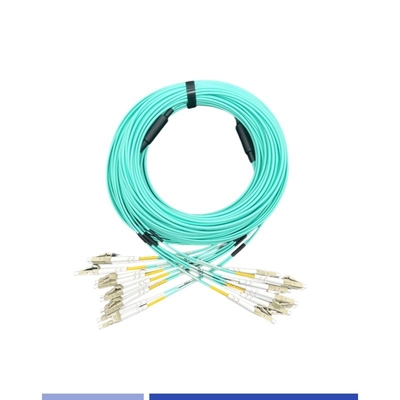

12 Core OM3 LC Fiber Optic Trunk Kabel Duplex 25m LSZH Jacket

Nama merek: GoreLink
Nomor Model: G233-11112-25
MOQ: 1 Piece
Waktu Pengiriman: 1-3 Working days
Ketentuan Pembayaran: T/T,Paypal,Western Union
Informasi Rinci
Tempat asal:
Buatan China
Sertifikasi:
RoHS,REACH
produk:
Kabel batang serat optik LC-LC
Aplikasi:
FTTH FTTB FTTX Network, Pusat Data
Bagian No.:
G233-11112-25
Jumlah Serat:
12 core
Konektor:
LC/UPC-LC/UPC Duplex
Modus Serat:
Multimode OM3
Jaket:
LSZH
Fanout:
2.0MM
panjang penyebaran:
0,5 m atau Disesuaikan
Panjang:
25 m
Diameter:
9.5mm
Kerugian penyisipan:
≤0.30dB
Mengembalikan kerugian:
≥30dB
Panjang gelombang:
850nm,1300nm
Warna:
Aqua
Kontrol Kualitas:
Tes 100% sebelum pengiriman
disesuaikan:
Ya.
Packaging Details:
Neutral Bag/GoreLink Bag
Deskripsi Produk

12 Fibers LC-LC Fiber Trunk Cable, Multimode OM3, LSZH,Aqua



GoreLink OM3 LC-LC 12-core fiber trunk cable is a pre-terminated, high-speed multimode fiber optic cable designed for reliable data transmission in data centers, enterprise networks, and telecom applications. It consists of 12 optical fibers (6 duplex LC connectors) in a single jacket, ensuring high-density connectivity with low insertion loss.





Application



  • FTTH access network

  • Telecommunication Networks

  • Data Centers (40/100G SR4, QSFP+ links)

  • Enterprise Networks (backbone, server connectivity)

  • Telecom & CCTV Systems (high-bandwidth video/data transfer)



Key Features & Benefits



  • High-Speed Data Transmission

  • OM3 Multimode Fiber Optimized for 10G, 40G, and 100G Ethernet

  • Laser-Optimized (850nm VCSEL): Ensures low latency and high bandwidth (up to 10 Gbps @ 300m).

  • Reliable & Durable Construction

  • LC-LC Duplex Connectors: Standard small-form-factor connectors for high-density patch panels.

  • 12 Fibers (6 Duplex Channels): Supports multiple connections in a single cable, reducing clutter.

  • LSZH/OFNR/OFNP Jacket Options: Flame-retardant for safety compliance in data centers.

  • Plug-and-Play Installation

  • Pre-Terminated & Tested: Saves time vs. field termination, ensuring low insertion loss (<0.3dB).

  • Flexible & Lightweight: Easy to route in tight spaces (e.g., server racks).

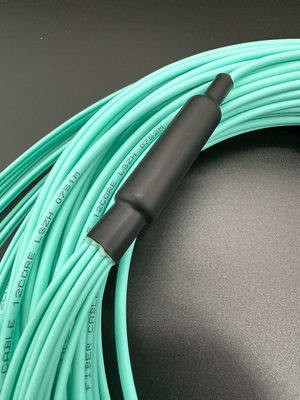

12 Core OM3 LC Fiber Optic Trunk Kabel Duplex 25m LSZH Jacket 0





General Specification





Fiber Mode

Multimode OM3 50/125um

Fiber Count

12 Fibers

Connector A

LC/PC

Connector B

LC/PC

Wavelength

850nm/1300nm

Polish Way

PC

Cable Diameter

9.5±0.05mm

Cable Color

Aqua

Cable Jacket

LSZH

Cable length

As per the order request

OPTICAL PERFORMANCE

Insertion Loss(IL)

≤0.30 dB (Low loss)

Return Loss(RL)

≥30dB

40/100G Ethernet Distance

150m @850nm

10G Ethernet Distance

400m @850nm

Operating Temperature

-10 to +70℃

Storage Temperature

0 to +60℃














Ordering Information





PART NO.

DESCRIPTION

G233-11112-3

Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,3Mtr,Fanout 2.0mm 0.5m

G233-11112-5

Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,5Mtr,Fanout 2.0mm 0.5m

G233-11112-10

Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,10Mtr,Fanout 2.0mm 0.5m

G233-11112-15

Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,15Mtr,Fanout 2.0mm 0.5m

G233-11112-25

Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,25Mtr,Fanout 2.0mm 0.5m

G233-11112-30

Fiber Optic Trunk Cable,12Core,LC to LC Duplex, MM-50/125,OM3, LSZH, Aqua,30Mtr,Fanout 2.0mm 0.5m

* Customized length





If you need any more help, please feel free to contact us at sales@gorelink.com .
