96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

Name: 96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-GYTA53-896
Availability: InStock

Nama merek:	GoreLink
Nomor Model:	GL-GYTA53-896
MOQ:	1000m
Waktu Pengiriman:	As per the order quantity
Ketentuan Pembayaran:	T/T,Paypal,Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

dibuat di Cina

Sertifikasi:

ISO,RoHS,REACH

Application:

Direct Burial Fiber Optic Cable

Nomor Bagian:

GL-GYTA53-896

Fiber Type:

Singlemode G652D

Jumlah Serat:

96 Serat

Anggota Kekuatan:

Anggota kekuatan pusat logam

Sarung Dalam:

Armored:

Aluminum tape+corrugated steel tape

Max. Maks. Capacity Kapasitas:

Hingga 288 core

Fiber Code:

GYTA53

jaket luar:

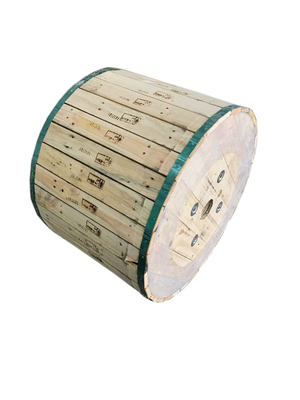

Kemasan rincian:

Gendang Kayu

Deskripsi Produk

Gorelink Direct-buried fiber optic cables can be directly buried in the ground, which eliminates the need for additional protective conduits or ducts, saving installation time and costs. They are designed to offer increased durability and resistance to moisture, temperature fluctuations, and physical damage.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

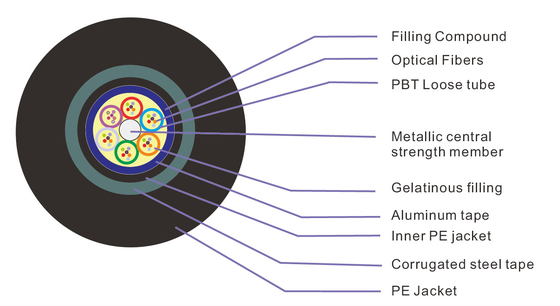

General Specification

Fiber Mode	Singlemode G652D
Fiber Count	96 Core
Cable structure	Stranded Loose tube
Double Armor	Aluminum + Corrugated Steel Tape Armor
Inner Sheath	PE
Strength Member	Metallic
Cable Diameter	12.0-18.5mm
Outer Jacket	PE
Cable Color	Black
Cable length	As per the order request
OPTICAL PERFORMANCE
Attenuation(dB/km)	≤0.36 dB @1310nm
Core diameter(um)	9±2.5
Cladding diameter(um)	125±1.0
Wavelength	1310nm / 1550nm

96 Core Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable 0

Download Datasheet

Outdoor Direct Burial Armored Fiber Optic Cable- GYTA53-Singlemode

Ordering Information

PART NO.	DESCRIPTION
GL-GYTA53-808	Outdoor Fiber Optic Cable, 8 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-812	Outdoor Fiber Optic Cable,12 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-824	Outdoor Fiber Optic Cable, 24 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
GL-GYTA53-848	Outdoor Fiber Optic Cable, 48 Fiber,Singlemode G652D,Direct Buried, PE,Black,GYTA53
GL-GYTA53-896	Outdoor Fiber Optic Cable, 96 Fiber,Singlemode G652D, Direct Buried ,PE,Black,GYTA53
GL-GYTA53-8144	Outdoor Fiber Optic Cable, 144 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
