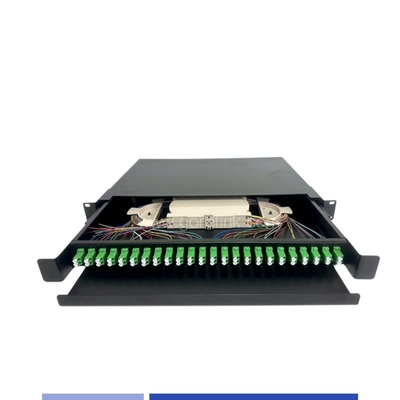

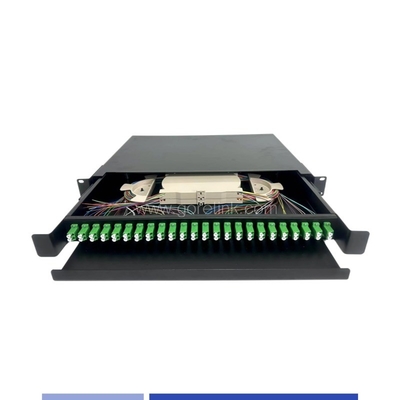

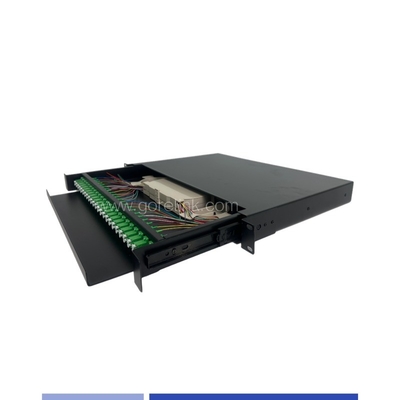

24 Port LC/APC Duplex 1U Fiber Optic patch panel 19" Rack Mounted Loaded LC/APC Singlemode Duplex Adapter

Name: 24 Port LC/APC Duplex 1U Fiber Optic patch panel 19" Rack Mounted Loaded LC/APC Singlemode Duplex Adapter
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: G702-24LC-903
Availability: InStock

Nama merek:	GoreLink
Nomor Model:	G702-24LC-903
MOQ:	Negotiable
Waktu Pengiriman:	1-7 hari kerja
Ketentuan Pembayaran:	T/T, Western Union, Paypal

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

RoHS,REACH

Product:

Fiber Optic Patch Panel

Application:

FTTH FTTB FTTX Network

Nomor Bagian:

G702-24LC-903

Jenis Produk:

Tipe laci geser keluar

Bahan:

baja canai dingin

Ports:

Jenis Adaptor:

Dupleks LC/APC

Kapasitas:

48 serat

Rack Units:

Pemasangan:

Rak 19" dipasang

Dimensi:

480*300*1U

Working temperature:

-20℃~75℃

Suhu penyimpanan:

-40~+85℃

Packaging Details:

1pcs/box, 5pcs/ctn

Deskripsi Produk

Gorelink offers a variety of fiber patch panels. The rack-mounted fiber patch panel is a hardware unit that houses fiber optic connectors and facilitates the termination, connection, and management of fiber optic cables. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections.There are 12 port,24 port,48 port,96 port available.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Parameters
Design	Sliding Rail
Material	Cold rolled steel sheet
Mounting Type	19" Rack Mounted
Capacity	48 Fibers
No. Of Rack Unit	1U
No. Of Tray	2x24F
Capacity of Tray	24F
Adapter	LC Duplex Port
Loaded	LC/APC SM Duplex adapter
Insertion Loss	≤ 0.3dB
Return Loss	≥ 55dB
Color	Black
Dimension	483x300x1U(44.5)mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

24 Port LC/APC Duplex 1U Fiber Optic patch panel 19" Rack Mounted Loaded LC/APC Singlemode Duplex Adapter 0

Download Datasheet

19" Rack Mounted 1U Fiber Patch Panel -G702 series

Ordering Information

PART NO.	DESCRIPTION
G702-24W	24 Port Fiber Optic patch panel,1U,19" Rack Mounted,Sliding rail,Unloaded adapter plate
G702-24LC	24 Port Fiber Optic patch panel, LC/APC Duplex(48 Fibers),1U,19" Rack Mounted,Sliding rail,Unloaded adapter and pigtails
G702-24LC-903	24 Port Fiber Optic patch panel, LC/APC Duplex(48 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded SM LC/APC Duplex adapter
G702-24LC-904	24 Port Fiber Optic patch panel, LC/APC Duplex(48 Fibers),1U,19" Rack Mounted,Sliding rail,Loaded SM LC/APC Duplex and 1m LSZH pigtail
* Customized
