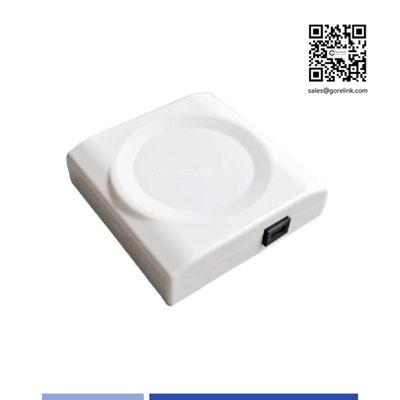

1 Port Fiber Optic Surface Box SC/APC Suitable for Indoor application unloaded

Name: 1 Port Fiber Optic Surface Box SC/APC Suitable for Indoor application unloaded
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FB12-1SC
Availability: InStock

Nama merek:	GoreLink
Nomor Model:	GL-FB12-1SC
MOQ:	Bisa dinegosiasikan
Waktu Pengiriman:	1-7 hari kerja
Ketentuan Pembayaran:	T/T, Western Union, Paypal

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

RoHS,REACH

Bagian No.:

GL-FB12-1SC

Jumlah Pelabuhan:

1 Pelabuhan

Bahan:

ABS

Aplikasi:

Di luar ruangan

Adaptor yang Cocok:

SC/LC

Kapasitri Max:

2 INTI

Jenis Adaptor:

Simpleks/Dupleks

Diameter Kabel:

6-12mm

Cara Pemasangan:

Dipasang di Tembok

Kunci Kompatibel:

Sekrup

Suhu operasi:

-20℃ hingga 75℃

Warna:

putih

OEM:

Ya.

Kemasan rincian:

1 pcs/kotak

Deskripsi Produk

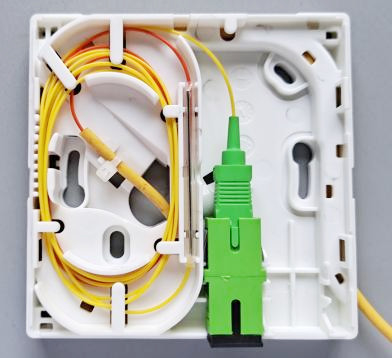

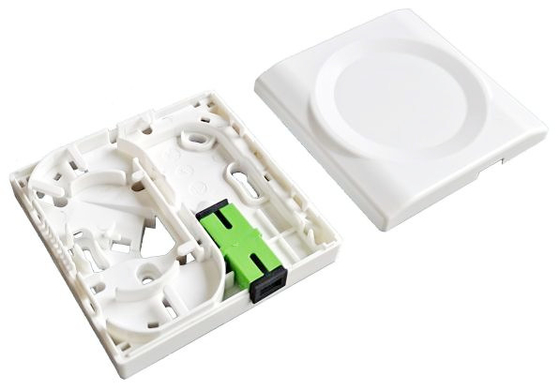

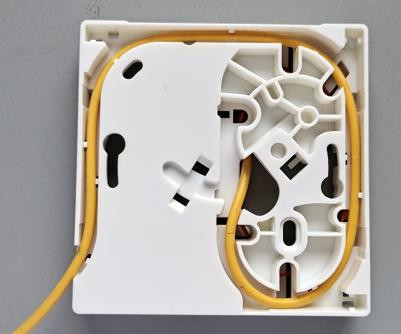

Gorelink Fiber Surface Box is designed to a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It cancan be used indoor or outdoor environment. It can be used to protect the connection between cable and pigtail and optic fiber terminations in the optic access network. It provides a safe and organized way to connect fiber optic cables to devices such as routers, switches, and other networking equipment.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Design	Fiber Wall Box
Material	ABS
Mounting Type	Wall Mounting
Max. Capacity	2 Fibers
Suitable Cable	4.0mm & 2*3mm Drop cable
Suitable Adapter	LC/SC
Loaded	SC/APC SM Simplex adapter without flange
Insertion Loss	≤ 0.3dB
Return Loss	≥ 55dB
Color	White
Dimension	80x80x20.5mm
Operating Temperature (°C)	-20 ~ +75
Storage Temperature (°C)	-40 ~ +85

1 Port Fiber Optic Surface Box SC/APC Suitable for Indoor application unloaded 0

Download Datasheet

Fiber Optic Distribution Box- GL-FB12 Series

Ordering Information

PART NO.	DESCRIPTION
GL-FB12-1SC	1 Port Fiber Surface Box, SC Simplex, unloaded
GL-FB12-1LC	1 Port Fiber Surface Box, LC Duplex, unloaded
GL-FB12-1SC-901	1 Port Fiber Surface Box, SC Simplex, Loaded SC/APC SM Simplex Adapter
GL-FB12-1LC-901	1 Port Fiber Surface Box, LC Duplex, Loaded LC/APC SM Duplex Adapter
* Customized

If you need any more help, please feel free to contact us at sales@gorelink.com
