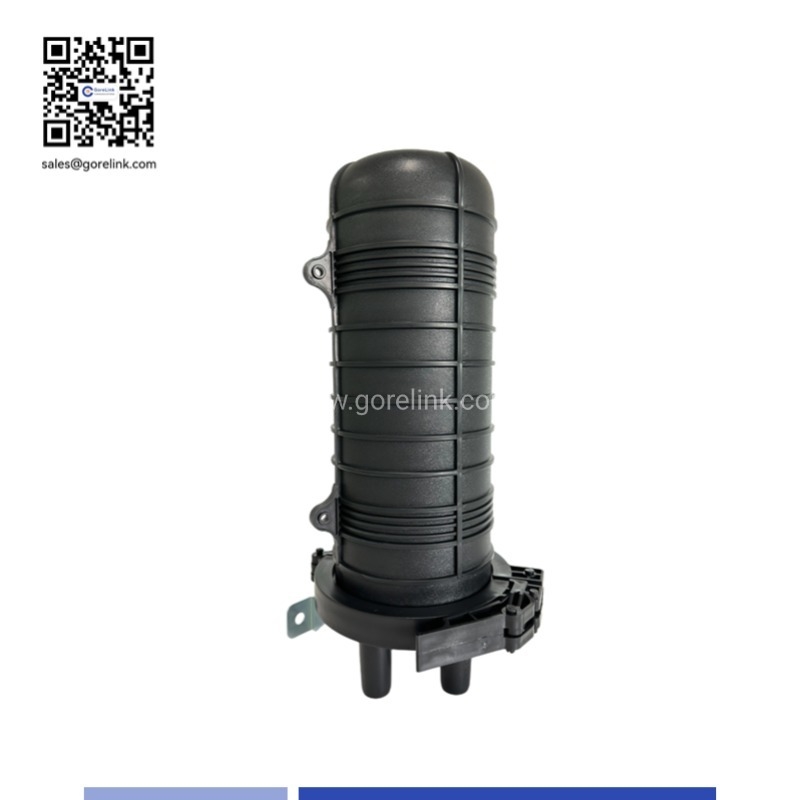

144 core Dome Fiber Optic Splice Closure UV Proof

Name: 144 core Dome Fiber Optic Splice Closure UV Proof
Brand: Gorelink Communication (Shenzhen) Co., Ltd.
SKU: GL-FOSC-D13144
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: Neutral

Sertifikasi: CE,RoHS

Nomor model: GL-FOSC-D13144

Syarat Pembayaran & Pengiriman

Kuantitas min Order: Bisa dinegosiasikan

Kemasan rincian: 1 pcs/kotak

Waktu pengiriman: 1-7 hari kerja

Syarat-syarat pembayaran: T/T, PayPal, Western Union

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Keterangan

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              144 core fiber splice closure, UV proof fiber optic closure, dome fiber splice closure


Nama Produk:	penutupan sambungan serat optik	Aplikasi:	Luar ruangan, Bawah Tanah
Fitur:	Memberikan terlindungi dengan baik dan terorganisir untuk kabel serat	Nomor bagian:	GL-FOSC-D13144
Kapasitas:	144 Fiber	Struktur:	Jenis kubah
Bahan:	Pp	Dimensi:	Φ420mm*140mm
Jumlah Pelabuhan:	1 oval+ 3 putaran	Diameter kabel:	21mm-40mm
Warna:	Hitam	Suhu operasi:	-40 ℃ hingga +70 ℃

Nama Produk:	penutupan sambungan serat optik
Aplikasi:	Luar ruangan, Bawah Tanah
Fitur:	Memberikan terlindungi dengan baik dan terorganisir untuk kabel serat
Nomor bagian:	GL-FOSC-D13144
Kapasitas:	144 Fiber
Struktur:	Jenis kubah
Bahan:	Pp
Dimensi:	Φ420mm*140mm
Jumlah Pelabuhan:	1 oval+ 3 putaran
Diameter kabel:	21mm-40mm
Warna:	Hitam
Suhu operasi:	-40 ℃ hingga +70 ℃

Keterangan

144 core Dome Fiber Optic Splice Closure UV Proof

Fiber optic Splice closure, also known as fiber optic closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely, either in the outside plant or in indoor buildings. It can protect the fiber joint and fiber cables, as they have excellent mechanical strength and a strong outer shell, which ensures the joints are not damaged by a hostile environment.It can be pole-mounted or buried installation.

Application of Fiber Splice Closure

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification of Fiber Splice Closure

Product	Dome Fiber Optic Splice Closure
Material	Hign-density plastic
Application	Aerial,Pole,Man-hole,Underground mounting
Max. number of Tray	6
Capacity of Tray	144F
Max. Capacity	96 Fibers
Cable Entry	4 (1 oval 3 round)
Suitable Cable	φ21mm-44mm(oval port)
Sealing Way	Heat-shrinkable
Color	Black
Dimension	420×140mm
Operating Temperature (°C)	-40 ~ +70
Storage Temperature (°C)	-40 ~ +85

144 core Dome Fiber Optic Splice Closure UV Proof 0

Ordering Information

PART NO.	DESCRIPTION
GL-FOSC-D1312	Fiber Optic Splice Closure,12 fiber,Dome type
GL-FOSC-D1324	Fiber Optic Splice Closure,24 fiber,Dome type
GL-FOSC-D1348	Fiber Optic Splice Closure,48 fiber,Dome type
GL-FOSC-D1396	Fiber Optic Splice Closure,96 fiber,Dome type
GL-FOSC-D13144	Fiber Optic Splice Closure,144 fiber,Dome type
* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
