rincian produk

Rumah Produk

adaptor serat optik

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange

Nama merek:	GoreLink
Nomor Model:	G419-144
MOQ:	1 buah
Waktu Pengiriman:	1-3 hari kerja
Ketentuan Pembayaran:	T/T, Western Union, PayPal

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Produk:

adaptor serat optik

Aplikasi:

FTTX/Telekomunikasi

Perlindungan laser:

Dengan penutup anti-laser

Bagian No.:

G419-144

Tipe adaptor:

LC/UPC

Jumlah serat:

segi empat

Jenis Serat:

Singlemode

Panjang gelombang:

1310 nm

Warna:

Biru

Flens:

tanpa flensa

Kerugian penyisipan:

≤0,3dB

Kembali Kerugian:

≥50db

lengan baju:

Zirkonia

Bahan perumahan:

Plastik

Suhu Operasional:

-40~+75℃

Suhu Penyimpanan:

- 40~+85℃

Kemasan rincian:

25pcs/Buku

Menyoroti:

LC quad fiber optic adapter

,

singlemode quad adapter with shutter

,

fiber optic adapter without flange

Deskripsi Produk

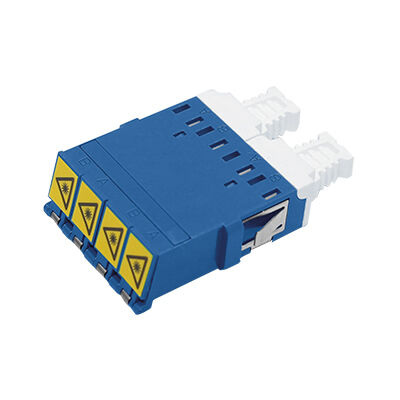

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange

This LC UPC quad fiber adapter is a high-density, multi-fiber optical terminator designed to safely and simultaneously terminate four independent laser outputs. It is engineered for use with LC Quad (4-fiber MPO-based) trunk systems commonly found in modern high-speed data centers (40G/100G/400G Ethernet), central offices, and any environment using parallel optics. This device ensures laser safety, protects sensitive transceivers from back-reflection, and maintains network integrity.

Application

FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks

General Specification

Fiber Adapter Type	LC
Body Style	Quad(4-fiber)
Fiber Mode	Singlemode
Polish Type	UPC
Insertion Loss	≤0.3dB
Mounting Type	Without Flange
Housing Color	Blue
Durability	＞1000 times
Alignment Sleeve Material	Ceramic
Flammability Rate	UL94-V0
Compliant	Telcordia GR-326-CORE

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange 0

Ordering Information

PART NO.	G419-144
DESCRIPTION	Fiber Optic Adapter,Anti Laser LC/UPC Singlemode Quad without flange

If you need any further assistance, please feel free to contact us at sales@gorelink.com.
